PRODUCT DETAILS：

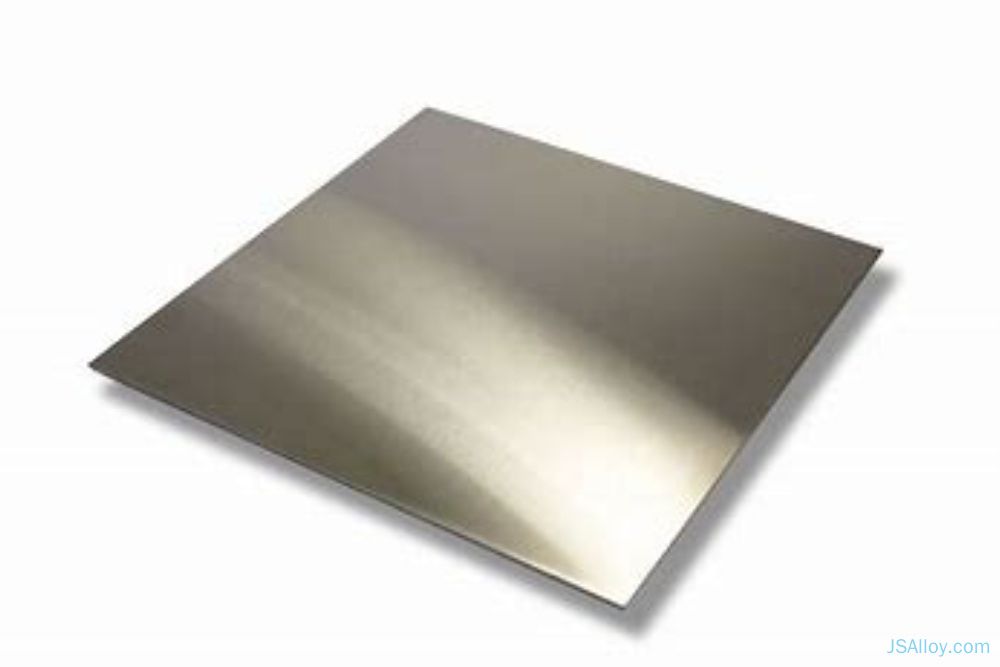

5083 H18 Aluminum plate

Chemical Composition: Aluminum Al: Balance Silicon Si: 0.4 Copper Cu: 0.1 Magnesium Mg: 4.0--4.9 Zinc Zn: 0.25
Manganese Mn: 0.40--0.10 Titanium Ti: 0.15 Chromium Cr: 0.05--0.25 Iron Fe: 0.4
Mechanical Properties: Tensile Strength σb (MPa): ≥270 Conditional Yield Strength σ0.2 (MPa): ≥110; Elongation δ10 (%): ≥20
Typical use
5083 is commonly used in ships, warships, vehicle materials, automobile and aircraft plate weldments, pressure vessels requiring strict fire protection, refrigeration devices, TV towers, drilling equipment, transportation equipment, missile components, armor, etc. Good formability, corrosion resistance, weldability, medium strength
5083 belongs to the Al-Mg-Si series alloy, which has a wide range of applications, especially the construction industry is inseparable from this alloy, and is the most promising alloy. Good corrosion resistance, excellent weldability, good cold workability, and medium strength. The main alloying element of 5083 is magnesium, which has good formability, corrosion resistance, weldability, and medium strength. It is used to manufacture aircraft fuel tanks, oil pipes, and sheet metal parts for transportation vehicles and ships, instruments, street lamp brackets and rivets, Hardware products, electrical casings, etc.
AL-Mg series alloy is the most widely used anti-rust aluminum. This alloy has high strength, especially fatigue resistance: high plasticity and corrosion resistance, and cannot be strengthened by heat treatment. Plasticity during semi-cold work hardening Still good, low plasticity during cold work hardening, good corrosion resistance, good weldability, poor machinability, and can be polished. Mainly used for low-load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as mailboxes, gasoline or lubricating oil conduits, various liquid containers and other small-load parts made by deep drawing: The wire is used to make rivets.
