The Welding neck flanges is normally referred to as the high hub flange. It is designed to transfer stresses to the pipe, thereby reducing high stress concentrations at the base of the flange.

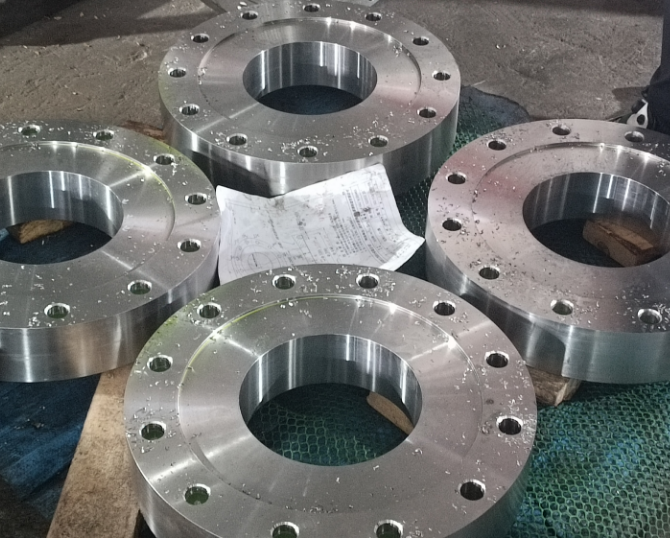

A weld neck flange (also known as a high-hub flange and tapered hub flange) is a type of flange. There are two designs. The regular type is used with pipes. The long type is unsuitable for pipes and is used in process plant. A weld neck flange consists of a circular fitting with a protruding rim around the circumference. Generally machined from a forging, these flanges are typically butt welded to a pipe. The rim has a series of drilled holes that permit the flange to be affixed to another flange with bolts.

Features:
UNS N04400
Monel 400 has a wonderful corrosion resistance by many reducing media such as sulfuric and hydrochloric acids. Generally, Monel 400 has a more resistantance to corrosion by oxidizing media than higher copper alloys. Monel 400 resists pitting and stress corrosion cracking in most fresh and industrial waters. It has good resistance in flowing seawater, but under stagnant conditions, pitting and crevice corrosion is induced. Monel 400 is probably the most resistant to hydrofluoric acid in all concentrations up to the boiling points. Monel 400 is not able for its toughness, it does not show embrittlement tendency at cryogenic temperatures. It is work hardenable.
Applications:
Monel 400 is applied in these field, like Chemical process equipment, crude oil stills, gasoline and fresh water tanks, marine engineering equipment, valves, pumps and fasteners.
Products of Monel 400 Available
• Sheet
• Plate
• Bar
• Pipe & Tube (welded & seamless)
• Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)

• Wire

GRADES:

CHEMICAL COMPOSITION:

PHYSICAL PROPERTIES:

MINIMUM MECHANICAL PROPERTIES IN THE ROOM TEMPERATURE:
